Kyosho 82724 2.4GHz FPV Monitor Kit for MINI-Z and Racers  [KY-82724]

Step into First Person View with Kyosho

Explore immersive FPV with the Kyosho 82724 - 2.4GHz FPV System, built to give R/C pilots a tighter connection to their model. Its FHSS 2.4GHz link helps keep video delays low while remaining straightforward to set up for hobby use.

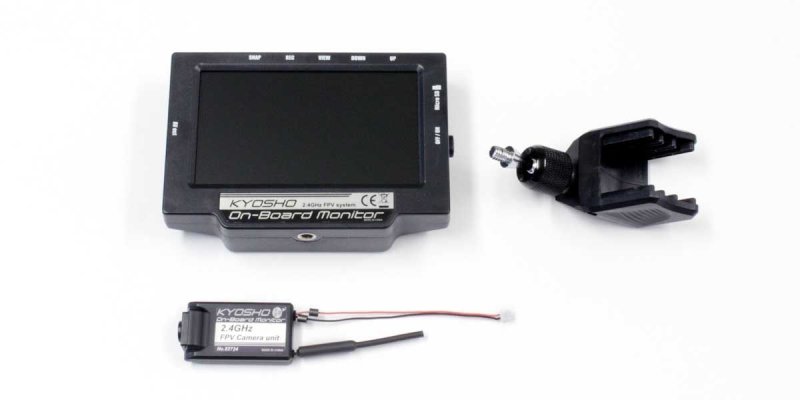

Compact Camera and Monitor Setup

The camera unit includes a compact transmitter designed for simple installation on an airframe or chassis and streams directly to the handheld monitor. Compatibility covers the Drone Racer and MINI-Z Racer with the right connector, and it can also interface with other models through a standard receiver connection.

• Manual camera tilt range of +/-20 degrees for framing
• Lightweight camera at 12g to minimise added mass
• 480x272 video resolution delivering 130,000 pixels
• 4.3 inch color LCD with adjustable contrast settings
• Monitor with SNAP, REC, VIEW buttons and essential controls
• Compatible with Kyosho KT-231P+, KT-331P, KT-531P transmitters

Installation and Power Notes

The monitor runs on a 3.7V 1000mAh LiPo, the same battery spec used by Drone Racer models, simplifying battery logistics. An AV output allows connection to larger displays and a micro SD slot stores captured images and video.
