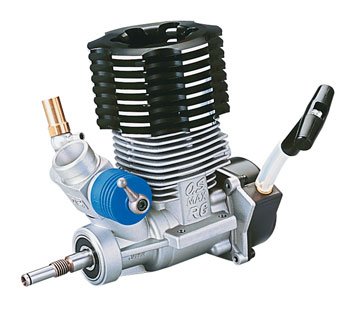

OS-13612 O.S. Engine 21RG-X (P) High-Rev Pull-Start Nitro Engine  [OS-13612]

O.S. Engine 21RG-X (P) w/Pull Start - OS Engine for All Nitro RC Buggy
Price:
NZD$306.48
Brand:
O.S. Engine
Model:
OS-13612
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

What the O.S. Engine 21RG-X (P) Delivers on Track

The O.S. Engine 21RG-X (P) delivers a mix of high rpm capability and usable midrange torque for 1/8 scale nitro buggies. The pull-start version keeps things simple when getting underway and lowers barriers for new nitro drivers.

Core Specifications and Rev Characteristics

This unit carries a 3.46cc displacement and is rated at 1.9 BHP at 30,000 RPM, with a practical operating window from 3,000 to 32,000 RPM. The result is a powerband that can cope with long straights and still provide controllable acceleration out of corners.

Chassis Compatibility and Installation Notes

Originally matched to several Kyosho 1/8 scale models, the 21RG-X (P) can be adapted to other frames using basic mounting tweaks. The pilot shaft crankshaft simplifies alignment and reduces fitment headaches.

Running Tips for Consistent Performance

Use a reputable nitro fuel and check your carburetor needles for track-specific tuning. Swap the glow plug periodically to maintain consistent ignition and avoid rough running during heats.

Specifications

  • Engine displacement: 3.46cc (0.211 cubic inches)
  • Bore size: 16.6mm (.654")
  • Stroke length: 16mm (.63")
  • Dry weight: 397.5 grams (14.03 ounces)
  • Rated power: 1.9 BHP at 30,000 RPM
  • Usable RPM: 3,000 - 32,000 RPM
  • Crank thread: 1/4" x 28
  • Total length: 83.2mm (3.28")
  • Overall width: 29.6mm (1.17")
  • Height: 97.1mm (3.82")

The O.S. Engine 21RG-X (P) suits racers and weekend tuners who want a compact, high-revving powerplant with easy starting and solid midrange response.

Yes, it is versatile enough for both spirited bashing and track use, though you may tune the carburetor and gear ratios differently depending on conditions.
Basic hand tools are sufficient, but a dial gauge or alignment tool helps ensure correct crankshaft and clutch alignment during installation.
Follow O.S. Engine recommendations for the 21RG-X (P) glow plug heat range and replace plugs that show heavy carbon or inconsistent starts after a few runs.
