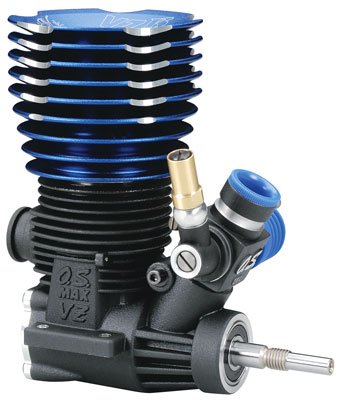

21VZ-B V-Spec-T P - O.S. Engine  [OSMG2068]

CHARACTERISTICS:

• Hardened, chrome-plated, 4-port, cylinder and liner for high durability and endurance
• Machined metal piston features parallel bands that trap gas natural oils and work-out use of them as a seal to enhance compression and boost energy
• Reshaped crankcase core guarantees smoother venting and much more constant performance
• slide valve carburetor with 8mm and 9mm carbohydrate restrictors enable tuning to particular track conditions, low-end needle adjusts forward and backward for maximum modification convenience
• V-shaped two-piece turbo mind design provides fast heat dissipation

INCLUDES:

• One .21 VZ-B V-Spec-T (P) rushing motor w/21C carburetor
• One P3 Ultra Hot Turbo plug
• One guide w/OS decal
• One extra mind shim/gasket(another gasket is pre-installed)
• One 8mm carbohydrate restrictor
• One 9mm carbohydrate restrictor
• One exhaust slot seal musical organization
• Two carbohydrate synthetic gaskets
• One carbohydrate target
• One exhaust address

NEEDS:

• #203 Air Cleanser Assembly, OSMG2360
• petrol with about 16per cent lubricant and 15%-30per cent nitro.
• The fuels we carry meet or surpass the lubricant content needed for maximum performance and maximum motor life.

SPECS:

• Practical RPM: 3000-40,000
• production: 2.48 bhp @ 33,000 RPM
• Bore: 0.654in
• Stroke: 0.630in
• Weight w/o Muffler: 12.7 oz (360g)
• Height from crankcase base to top of cylinder mind: 110.6mm (4.4")
• Height/crankshaft center to top of cylinder mind: 95.3mm (3.8")
• Width including mounting ears: 45mm (1.8")
• Width excluding mounting ears: 30.8mm (1.2")
• Width between mounting holes exact same component: 21mm (.83")
• Width between mounting holes opposite component: 37mm (1.5")
• Cylinder mind diameter: 57.2mm (2.3")
• Duration of exposed pilot shaft/crankshaft: 29.6mm (1.17")
• Internal thread size at end of crankshaft: 3mm

COMMENTARY:

• Turbo radiance plugs don't require a copper gasket.
• With all the carbohydrate restrictors, the motorist can choose either low gas comsumption or high power, permitting a variety of motor control. Usage is generally the annotated following:
  • -9mm Blue: Fitted with carbohydrate when it makes the factory. appropriate high-speed and flat courses looking power.
  • -8mm Red: offered engine. Ideal for technical and bumpy courses when less gas usage is more essential.
