O.S. Engine OS4A404160 Head Shim 0.2T GGT10 for Nitro RC Engines  [OS4A404160]

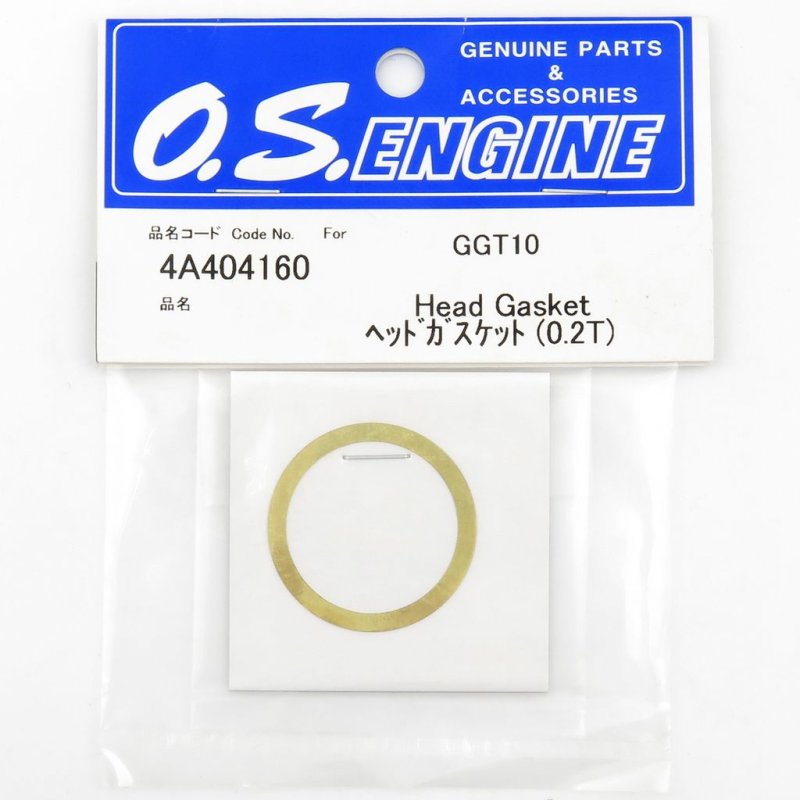

O.S. ENGINES HEAD GASKET 0.2T GGT10
Price:
NZD$11.82
Brand:
O.S. Engine
Model:
OS4A404160
GTIN:
4531028156937
Condition:
Brand New
Write a review

Thin 0.2T gasket for O.S. Engine nitro units

This O.S. Engine OS4A404160 head gasket is a 0.2T shim designed for O.S. nitro model engines that use GGT10 gaskets. It offers a thin sealing option for tuners and mechanics adjusting combustion volume and head sealing.

Installation notes: thoroughly clean mating surfaces, inspect head and liner faces for warping, and replace the gasket whenever the head is removed or where sealing shows signs of failure. Treat any change in gasket thickness as a tuning adjustment, because small shifts can influence starting and midrange behaviour.

Tuning role: the 0.2T gasket is aimed at minimal combustion volume reduction to help refine compression and throttle response without replacing major engine parts.

What is the recommended fitting procedure for this gasket?

Fit the gasket on a clean, flat head surface, align dowels and bolt holes, and torque bolts evenly to spec. Refer to the engine service guide if you are unsure about correct torque or sequence.

Will switching to 0.2T affect engine reliability?

When used as intended, the 0.2T shim is a fine tuning tool and should not harm reliability. Monitor glow plug color and running after fitting to confirm safe combustion and adjust needles if needed.
