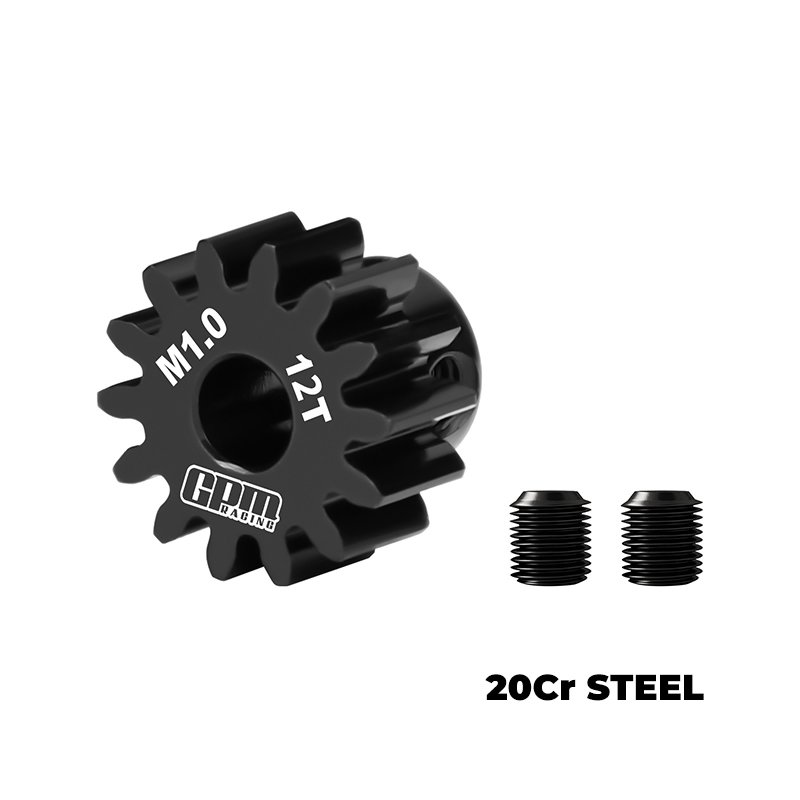

Pinion Gear for ARRMA/TRAXXAS 1/8-Scale Motors - MG5012TS by GPM [MG5012TS]

20CRSteel Motor Gear 13T-20T(module:1.0mm,Motor Tooth Diameter:5.0mm, Round Hole)

Price:

NZD$13.24

Brand:

GPM

Model:

MG5012TS

GTIN:

4894538414318

Condition:

Brand New

Color Available:

Quantity:

Write a review

alt="20CRSteel Motor Gear 13T-20T(module:1.0mm,Motor Tooth Diameter:5.0mm, Round Hole)" title="20CRSteel Motor Gear 13T-20T(module:1.0mm,Motor Tooth Diameter:5.0mm, Round Hole)"

Description
FAQ

Replacement motor pinion overview

This RC motor pinion is manufactured from 20Cr steel and finished with a black hardening process to extend service life in drivetrain assemblies. It covers tooth counts between 13T and 20T, utilises module 1.0mm teeth and a 5.0mm motor bore, and is fitted to the motor shaft via a round hole secured by two 4x4 set screws for a conventional clamp fit.

Use this pinion when your ARRMA or TRAXXAS 1/8-scale build needs a direct swap and the dimensions match your motor. Verify tooth count, module and bore size on your current pinion before purchase to ensure correct fitment.

Compatible Models

Compatible with 1/8-scale ARRMA and TRAXXAS models

How durable is the 20Cr steel with the black hardening?

The 20Cr material combined with the hardening finish improves wear resistance under normal RC loads; it is intended for standard transmission use but always inspect gearmeshing and lubrication for long service life.

Will I need to machine the pinion for different shafts?

If your motor has a 5.0mm round shaft and accepts two 4x4 set screws, no machining is required. Non-standard shaft types may require modification or a different pinion type.
