Portable PSIS-V2 Soldering Station by Team Powers for RC Field Repairs  [TP-PSIS-V2]

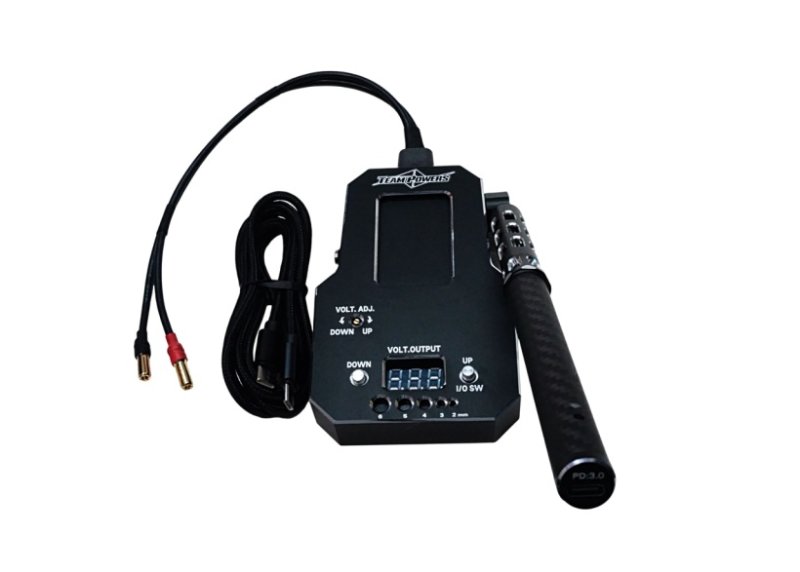

Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)
Price:
NZD$184.15
Brand:
Team Powers
Model:
TP-PSIS-V2
Condition:
Brand New
Available in shop
Write a review
alt="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)" title="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)"
alt="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)" title="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)"
alt="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)" title="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)"
alt="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)" title="Team Powers Portable Soldering Iron Station V2 (TP-PSIS-V2)"

On-Field Soldering Solution for RC Components

The Team Powers PSIS-V2 is built as a compact soldering station aimed at on-the-go servicing of model electronics. It handles common field chores such as rejoining servo wires, swapping connectors, and carrying out small wiring fixes on ESCs and motor assemblies.

Power options include 7.4V-18V input (2S-4S LiPo) or PD 3.0 USB power, which gives flexibility when mains power is not available. The aluminum casing with a carbon graphite iron top is intended to deliver a good balance between heat handling and portability for field use.

Operator features cover an on/off key, a voltage input/output display, a small part tray with foam storage, and a 2mm-6mm plug holder for common plugs. The iron can be rolled to a comfortable working angle and accepts replaceable tips to match different soldering needs. Users report that the station reaches working temperature quickly to reduce downtime.

Specifications

  • Item: Portable soldering iron station, field-use configuration
  • Material: Aluminum station casing, carbon graphite iron top body, aluminum bottom cover
  • Model Number: PSIS-V2
  • Compatibility: Input power 7.4V-18V (2S-4S LiPo), supports PD 3.0 USB power
  • Dimensions: ~120(L) x 80(W) x 20(H) mm
  • Weight: ~252 g (station and soldering iron only)
  • Features: Rapid heat to operating temperature, replaceable iron head, voltage display, on/off key, part tray, foam area, 2mm-6mm plug holder, adjustable iron body position

For model builders and event technicians needing a compact, battery-friendly soldering option, the PSIS-V2 is tailored to practical field repairs and rapid adjustments during events.

What input voltages will the PSIS-V2 accept from battery packs?

The station accepts 7.4V-18V input, corresponding to 2S-4S LiPo packs. Make sure the connector and wiring you use are rated for the pack voltage and current, and observe correct polarity when connecting.

Can I rely on a PD 3.0 power bank to run the iron?

Yes, a PD 3.0 capable power bank can be used as an alternative power source. Use a certified PD supply and a suitable cable to maintain stable operation while soldering.

How straightforward is replacing the iron tip in the field?

Tip replacement is straightforward; carry compatible spare tips and a small tool if needed. Confirm the replacement tip fits the iron’s mount and can tolerate the station’s operating temperature.

What practical repairs can I complete at events with this station?

Typical field repairs include resoldering servo leads, repairing battery connectors, touching up ESC wiring, and small fixes to motor wiring where a compact, battery-capable iron is preferred.
