Tamiya 58725-60A 1/10 Squash Van GF-02 Kit - Vintage Style  [58725-60A]

Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)
Price:
NZD$219.37
Brand:
Tamiya
Model:
58725-60A
GTIN:
4950344587254
Condition:
Brand New
Write a review
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"
alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"

Vintage panel van aesthetic paired with modern GF-02 parts

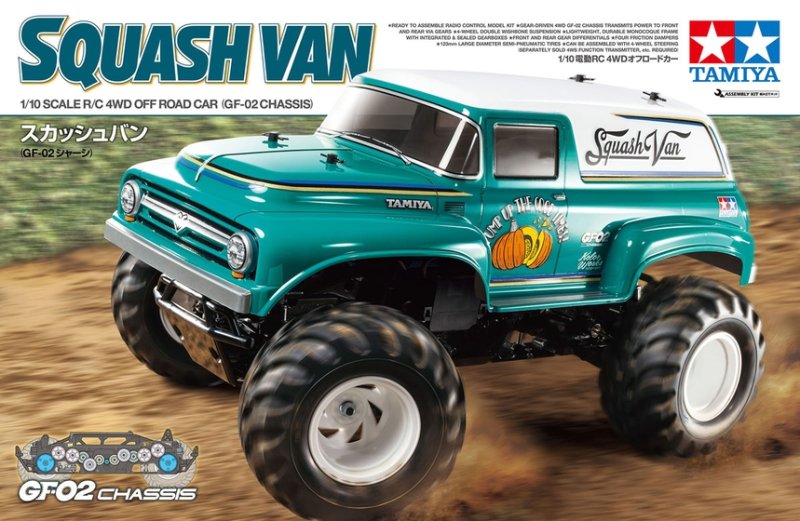

The Tamiya Squash Van, model number 58725-60A, captures a classic 1950s panel van profile while using contemporary RC components. Its clear polycarbonate shell reproduces retro lines and mounts to the GF-02 layout for credible off-road capability.

Stable platform from the GF-02 design

Compared with earlier GF platforms, the GF-02 gives a longer wheelbase for improved tracking and a monocoque influenced layout that positions the motor centrally and low. Power is routed via a gear-driven 4WD train and sealed gearbox housings help limit dirt intrusion.

Tunable drivetrain and suspension

Front and rear gear differentials promote predictable cornering, and the four-wheel double wishbone suspension with friction dampers helps control body motion on uneven ground. The kit allows three gear ratio choices with separately available pinions and accepts many third-party 4WS setups.

Specifications

Specifications

  • Scale: 1/10
  • Chassis Type: GF-02
  • Wheelbase: 267 mm
  • Tread: Front: 223 mm / Rear: 221 mm
  • Tire Diameter: 122.8 mm V-Block pattern
  • Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1)
  • Motor: 540 brushed type
  • Electronic Speed Control (ESC): Not Included
  • Suspension: Fully Independent Double Wishbone

Whether you build for display or for regular bashing, the Squash Van delivers genuine retro character along with a chassis that rewards tuning and sensible upgrades.

The polycarbonate body will require cutting to size at the factory lines and painting with polycarbonate-safe paint. Masking and thin coats help preserve the crisp retro lines.
Yes, the GF-02 wheel hubs accept a range of wheel and tyre combos. Swapping to softer compounds or wider rims is a common way to tune traction for different surfaces.
An ESC is not included and you will need one matched to a 540 brushed motor and your battery voltage. Choose an ESC rated for the battery and motor current you intend to run.
The GF-02 uses a sturdy gear-driven 4WD layout and sealed gearboxes that offer good durability for general off-road use, though aggressive jumps or impacts can still damage components if protection is not added.
