XRAY 371018 X1'18 Compact 2mm Graphite Chassis  [XR-371018]

XRAY 371018 X1\'18 Graphite Chassis 2.0mm
Price:
NZD$205.20
Brand:
XRAY
Model:
XR-371018
Condition:
Brand New
Write a review
alt="XRAY 371018 X1\'18 Graphite Chassis 2.0mm" title="XRAY 371018 X1\'18 Graphite Chassis 2.0mm"

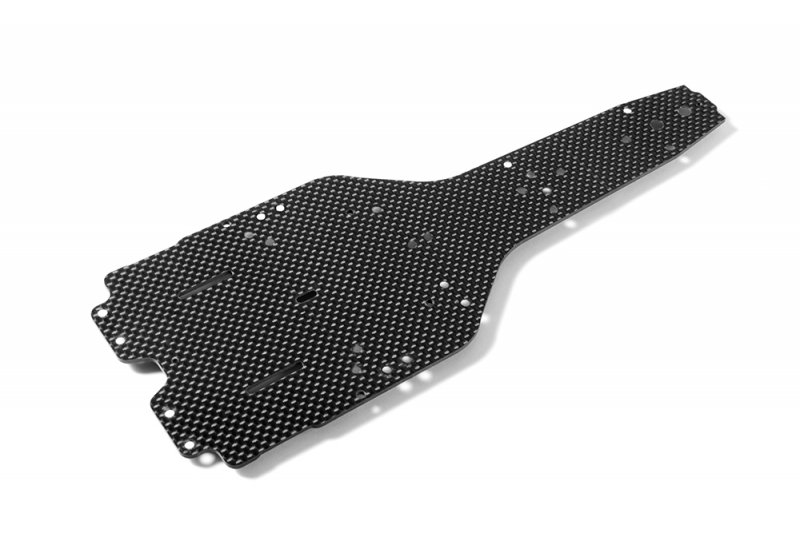

Tune your X1'18 with a narrow 2mm graphite chassis

The XRAY 371018 X1'18 Graphite Chassis is aimed at drivers seeking extra bite on low-traction surfaces. At 2mm thick it increases chassis flex to enhance tyre contact and traction. The chassis is 24mm narrower than older versions, lowering lateral contact when cornering to improve turn-in speed. A slot for a composite battery backstop provides a 5mm battery position range to help balance the car in cross-chassis layouts. It is also compatible with the #371149 graphite rear pod plate for straightforward integration.

Specifications

  • Material: Graphite
  • Thickness: 2mm
  • Narrower Width: 24mm reduced
  • Battery Position Adjustment: 5mm
  • Compatibility: XRAY X1 2018 Specs, #371149 Rear Pod Plate

A practical upgrade for racers wanting finer control and improved corner performance in slick conditions.
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Will the 2mm chassis suit my driving style?

If you favour a more compliant chassis that helps the tyres follow uneven surfaces, the 2mm sheet will add the flex needed to increase traction on low-grip tracks.

Is the battery slot adjustable enough for different packs?

The backstop slot offers a 5mm adjustment window, letting you shift the battery to tune weight distribution without fabricating mounts.

Do I need extra parts to fit this chassis?

No special adapters are required for standard X1'18 builds; it is made to work with existing cross-chassis setups and the #371149 rear pod plate.
