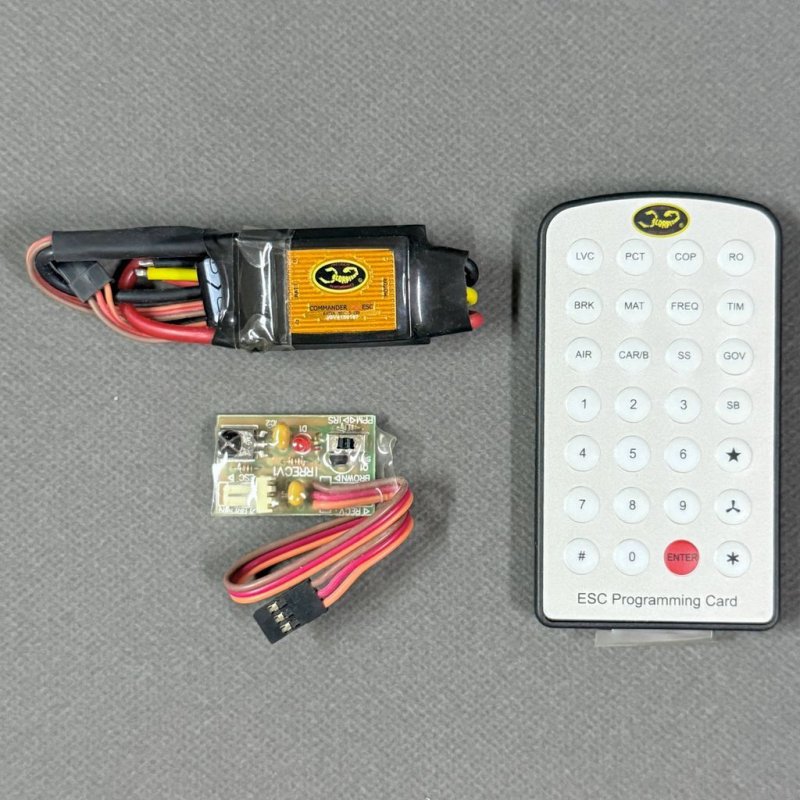

Scorpion SPCR15V25AESC 2-4S Rated 25A Brushless ESC for Planes and Helis  [SPCR15V25AESC]

Power delivery and BEC overview

The Scorpion SPCR15V25AESC serves as an electronic speed controller tailored for electric model aircraft, supporting 2S through 4S LiPo packs and offering a 25A current rating alongside a 6V/2A BEC. It provides regulated power to brushless motors while also feeding servos and radio equipment on compact airframes.

Compatibility comes down to voltage and current: use this ESC with brushless setups that remain within its 25A capacity and with 2-4S LiPo supplies. The on-board 6V/2A regulator is suitable for common lightweight servos and receivers, though heavier servo loads should be evaluated to avoid overtaxing the BEC.

Mounting guidance: position the ESC to benefit from cooling airflow during extended flights and isolate it from excessive vibration. Keep battery and motor cables neat and short, secure all soldered or crimped connections, and separate power wiring from sensitive signal cabling to reduce interference.

Tuning guidance: program throttle curves, cutoff voltage, and other parameters using your ESC programming method to match your motor, propeller and battery choices. Confirm servo performance under working loads and monitor BEC voltage under peak conditions to ensure stable operation.

This compact ESC offers a practical 25A rating with a 6V/2A BEC for many 2-4S aircraft conversions or replacements.
