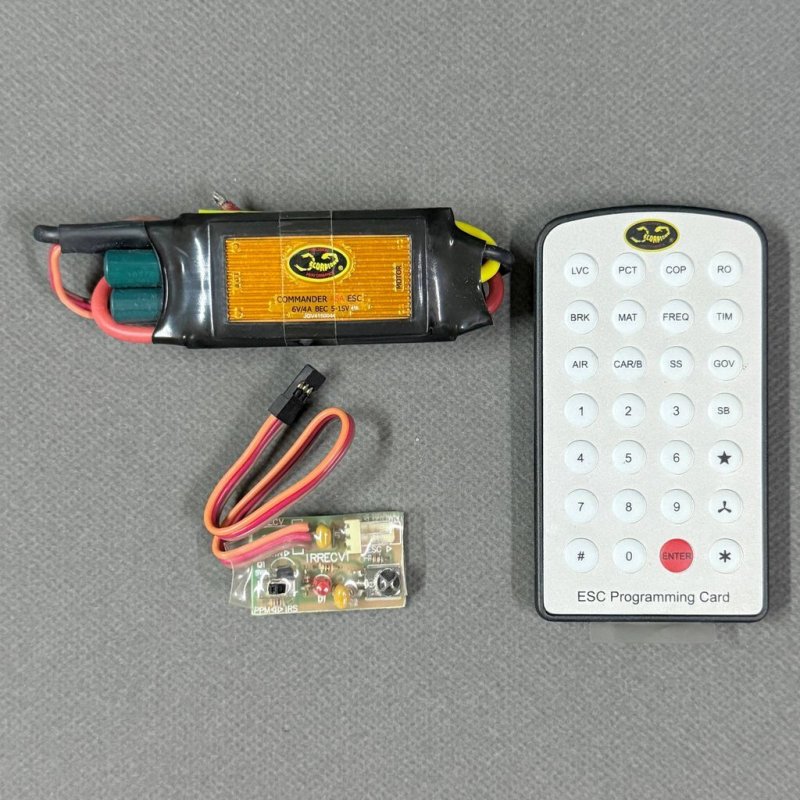

Scorpion SPCR15V45AESC 45A 15V Brushless ESC with Integrated 6V/4A BEC for 2-4S  [SPCR15V45AESC]

Practical guidance for ESC setup

The Scorpion SPCR15V45AESC functions as an electronic speed controller for brushless motors running on 2-4S battery configurations, and includes a 6V/4A onboard BEC to power servos and the receiver in both fixed-wing and rotary RC craft. The following notes concentrate on compatibility, sensible mounting, wiring basics, and how the ESC factors into tuning without adding unlisted specifications.

Compatibility and placement: install the ESC where cooling airflow or component spacing helps thermal performance, and keep battery and motor leads short to lower resistance. Separate the BEC wiring to the receiver and servos where possible to limit interference, and avoid long signal runs alongside high-current cables. For helicopter use, ensure the BEC can cope with transient servo peaks and verify voltage stability during aggressive manoeuvres.

Wiring and connectors: match battery connectors and motor wires to your expected current load and ensure polarity is correct before powering up. If using an external BEC or power distribution board, remove or disable the onboard BEC to avoid dual-supply issues. Set throttle travel, endpoints and safety cutoffs according to the guidance from your transmitter and motor supplier.

Tuning role: the ESC supplies main power regulation and a 6V/4A source for onboard electronics. It will influence throttle behaviour, braking characteristics, and thermal or current protection if the firmware supports those functions. When adjusting throttle response for an airframe, use the radio or flight controller curves and perform bench load tests to confirm how the ESC behaves under real load.

For modelers needing an integrated BEC and a compact ESC for 2-4S brushless aircraft, the SPCR15V45AESC covers essential power and servo supply needs; always verify installation, cooling and BEC capacity for your specific airframe before flight trials.
