Servo Horn Drill Gauge Template 9.5-12mm - Futaba FUHT2 (EBS0161)  [FUHT2]

FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)
Price:
NZD$9.20
Brand:
Futaba
Model:
FUHT2
Condition:
Brand New
Write a review
alt="FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)" title="FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)"

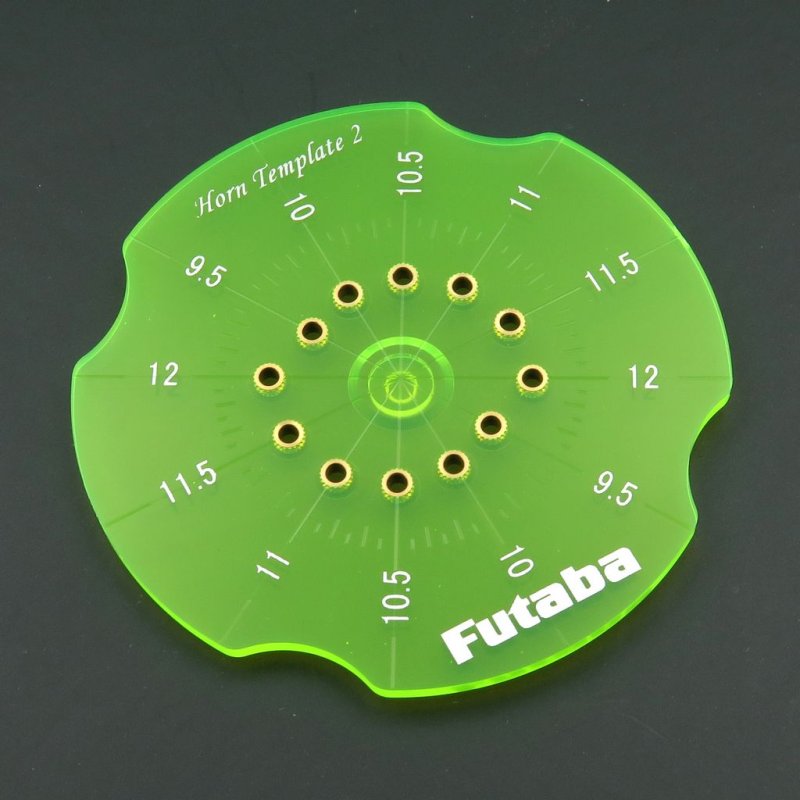

Layout verifier for 9.5-12mm horn holes

The Futaba FUHT2 template provides a simple RC drill gauge to inspect and reproduce hole arrangements for servo horns measuring 9.5-12mm. Use it to check spacing and alignment before committing to drilling or while fitting aftermarket horns during setup and tuning.

The template helps you match an existing horn's hole pattern, mark fresh hole centres, or confirm spacing on custom-cut pieces. It is a visual and tactile guide that reduces guesswork when consistent horn geometry is required for steering and linkages.

Workshop tip: position the template flat, align any reference edges, and mark through the apertures with a centre punch or fine marker. Work methodically to preserve identical geometry across multiple horns or replacement parts.

How does the template help with custom horn fabrication?

It lets you transfer exact hole positions to custom-cut blanks so each horn shares the same mounting geometry, which simplifies alignment and reduces setup time.

What is the best way to hold the template while marking?

Hold the template firmly against the horn and, if possible, secure the horn with a small clamp or in a vise to prevent movement while you mark hole centres.

Will the gauge help with alignment for dual-servo setups?

Yes. By reproducing identical hole centres, the template helps ensure both horns have matching geometry, which is important for symmetrical steering links.
