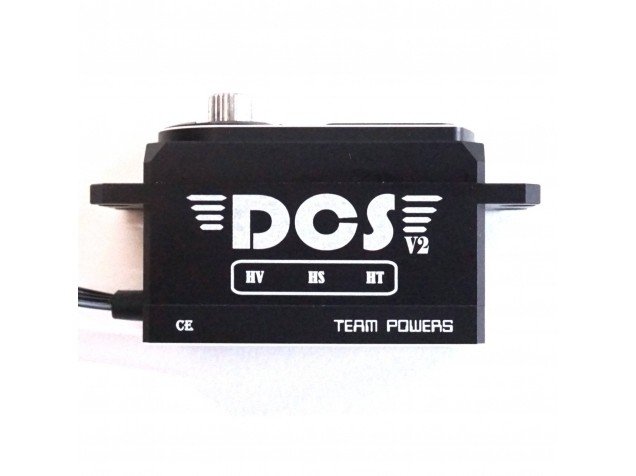

Team Powers DS1305-V2 Compact Race Servo - Digital Coreless Aluminium  [TP-DS1305-V2]

Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)
Price:
NZD$157.46
Brand:
Team Powers
Model:
TP-DS1305-V2
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)" title="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)"
alt="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)" title="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)"
alt="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)" title="Team Powers Digital Coreless Servo - Low Profile (Alu. Casing) (TP-DS1305-V2)"

Compact Race-Grade Servo with Metal Gears

Team Powers DS1305-V2 Digital Coreless Servo delivers tight control for racers and serious hobbyists. The low profile aluminium case keeps the unit light and protected, fitting into constrained servo bays without sacrificing stiffness.

Smooth Direct Drive and Durable Titanium Teeth

The servo uses a direct drive arrangement for responsive movement and minimal slack. Titanium metal gears resist wear during intense sessions, and the servo performs consistently across the 4.8V to 8.4V operational window.

Specifications

  • Operating Voltage Range: 4.8V~8.4V
  • Gear Material: Titanium Metal
  • Weight: ~52g
  • Dimensions: 41mm (L) x 26.5mm (W) x 20mm (H)
  • Stall Torque: 10kg-cm @6V, 13kg-cm @7.4V, 15kg-cm @8.4V
  • Operating Speed (No Load): 0.065 sec/60° @6V, 0.055 sec/60° @7.4V, 0.05 sec/60° @8.4V

A solid choice for track-focused builds, the DS1305-V2 gives predictable feel and rugged gearing that stands up to frequent use.

Is the DS1305-V2 suitable for drift or touring cars?

Yes, its compact height and precise response make it well suited to touring and drift models where space is limited and steering precision matters.

Does the aluminium case improve heat management?

The aluminium shell helps dissipate heat better than plastic enclosures, which can aid thermal stability during extended runs at higher voltages.

Can I swap in different servo horns?

Yes, standard servo horns are compatible. Choose a horn and linkage setup that gives the steering throw and mechanical advantage you need for your specific vehicle.

What should I check if the servo stutters?

Confirm your power supply and signal connections, check for binding in the steering linkages, and inspect the gears and horn for signs of wear or loose screws.
