Tamiya 58484 Weider HSV-010 1/10 GT Replica  [58484]

Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2
Price:
NZD$300.89
Brand:
Tamiya
Model:
58484
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2" title="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2"
alt="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2" title="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2"
alt="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2" title="Tamiya 58484 - 1/10 RC Weider HSV-010 - TA05V.2"

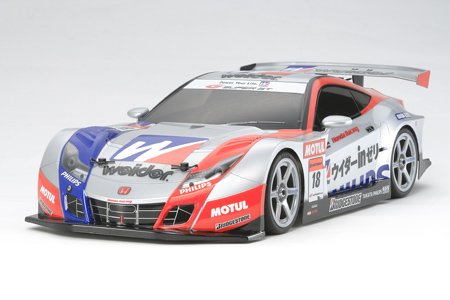

Heritage on the Circuit with the Tamiya 58484 Weider HSV-010

The Tamiya 58484 Weider HSV-010 recreates the 1/10 scale presence of the 2010 Super GT500 champion. The kit captures Team Weider's Honda HSV-010 styling and livery, offering a realistic subject for display and club racing alike.

Highlights from Team Weider's 2010 season

During the 2010 campaign the HSV-010 made an immediate impression, taking pole positions early in the year and securing notable wins like Okayama. Those steady results helped the team clinch the title, and this model lets hobbyists celebrate that season on track or shelf.

TA05V.2 handling and construction

The TA05V.2 chassis delivers refined handling thanks to a narrowed chassis that promotes roll characteristics in corners. A one-piece aluminium motor mount and cantilever centre shaft move the battery forward to improve balance, while 37T ball diffs front and rear and an 18T centre pulley refine driveline performance. The double wishbone suspension with inboard front layout and reversible arms gives tunability for different surfaces.

Specifications

  • Scale: 1/10
  • Length: 441mm
  • Width: 191mm
  • Height: 116mm
  • Wheelbase: 257mm
  • Tread (Front & Rear): 165mm
  • Motor: Type 540
  • Drive: 4WD, 2-Belt Driven
  • Differential Gears: Front & Rear Ball
  • Suspension: Front & Rear Double Wishbone
  • Shock Unit: CVA Super Mini
  • Gear Ratio: 7.19:1
  • Tire Width/Diameter: 24mm/64mm

Tamiya 58484 blends race history with a chassis aimed at controllable handling, making it well suited for builders who like to set up and race period-correct GT cars.

Yes, the body and livery detail make it a strong candidate for static display, especially when painted and finished carefully to match the original race car.
Standard 2.4GHz radio systems and compact servos fit well; choose a low-profile servo if you are running tight body clearances.
Yes, a properly matched brushless motor and ESC can be fitted, taking care to select gearing and cooling appropriate for the Type 540 footprint and the chassis layout.
Adjust shock oil, spring rate and tyre compound to suit grip levels. The TA05V.2 tolerates a range of setups, so start conservative and make small incremental changes.
